Model 303 Features

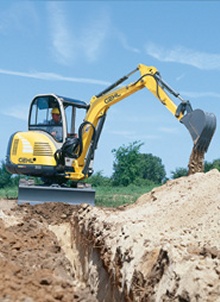

Compact Excavator 303

Big Power, Small Size! No need to sacrifice precision handling and maneuverability to get the power of a bigger machine. Gehl Compact Excavator Model 303 gives you more power, while offering the same hydraulically dampened drive levers and pedals found in larger units, for complete operator control.

  • Dig Depth (mm): 9'1"/9'11" (2769/3025)

  • Net Power (kW): 29 hp (21.5)

  • Op. Weight (kg): 6,875 lbs (3119)

  • Height: 7’10.5” (2388)

  • Width: 4’10” (1473)

  • Length: 10’4” (3150)

Standard Equipment
Optional Equipment

  • Enclosed ROPS Cab or Canopy
  • Advanced Hydraulic System
  • Hydraulic Oil Cooler
  • Pilot-operated Joystick Control
  • Double Variable Displacement Pump
  • Parking Brake Turn Motor
  • Boom-mounted Work Light
  • Suspension Seat
  • Rubber Tracks
  • SAE/ISO Control Pattern Selection
  • Dual Travel Speeds
  • Hydraulically Dampened Drive Pedals
  • Auxiliary Hydraulic with Flat-faced Couplers
  • Dozer Blade
  • Independent Boom Swing
  • Long Arm
  • Steel Tracks





Large capacity buckets and powerful hydraulics move more material
Large hood provides easy access to maintenance locations
Oil cooler for hydraulic system
High-quality Bridgestone
rubber tracks
